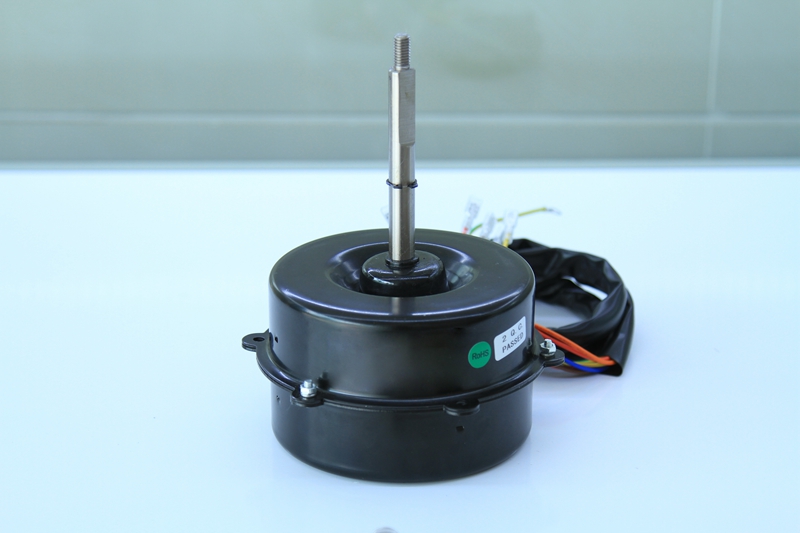

Motor Specs:
1. Rated voltage: 220V 50Hz / 110V 60Hz;
2. IP level : IP 20 / IP 43, Insulaton class: B / F;
3. Automatic thermal cutoff;
4. Nickel-phosphorus treated shaft, e-coating or zinc-plated endshileds for anti-rust treatment;
5. The motor applies to air-conditioner out-door
unit or similar applications.

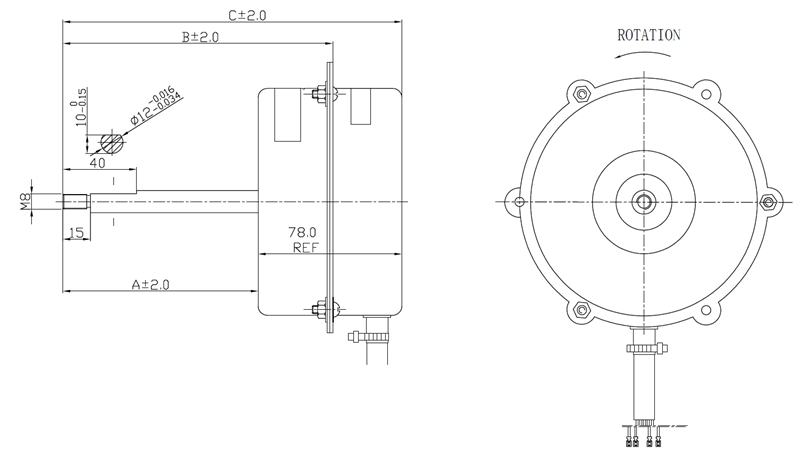

| Mounting Dimensions 安装尺寸(mm) |
| A | B | C |
Customizable
可定制 | Customizable
可定制 | Customizable
可定制 |
|
| Typical Motor Performance For Referance |
| 电机型号 | 额定电压/频率 | 参考转速 | 输出功率 | 转向 | 噪音 |
| Motor Type | Vol./Fre.
(V/Hz) | Speed
(RPM) | Output Power
(W) | Rotation | Noisy
(dBA) |
| YDK-25W-6P | 220V/50Hz | 600 - 800 | 25 | CW / CCW | ≤42 |
| YDK-30W-6P | 220V/50Hz | 600 - 800 | 30 | CW / CCW | ≤42 |
| YDK-40W-6P | 220V/50Hz | 600 - 800 | 40 | CW / CCW | ≤42 |
| YDK-50W-6P | 220V/50Hz | 600 - 800 | 50 | CW / CCW | ≤42 |
| YDK-60W-6P | 220V/50Hz | 600 - 800 | 60 | CW / CCW | ≤42 |
