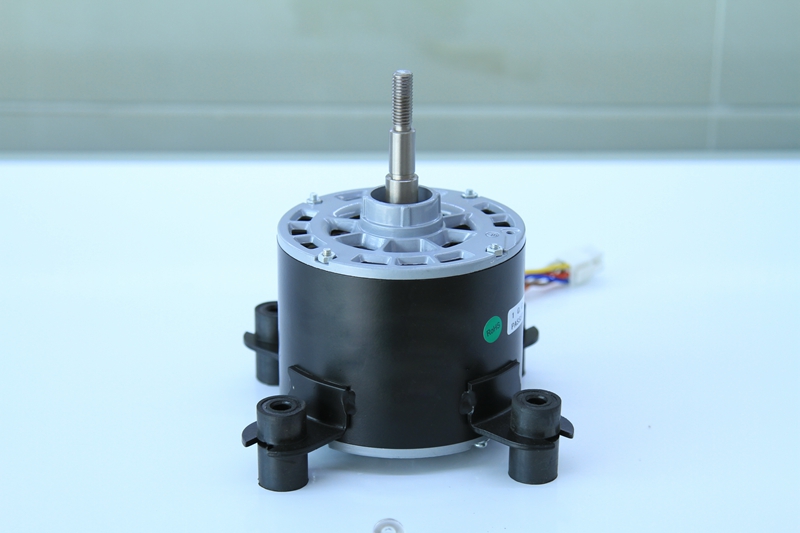

Motor Features:
1. Rated voltage: 220V 50Hz / 110V 60Hz;
2. IP level : IP 20 / IP 43, Insulation class: B / F;
3. Vibration isolator assembled to reduce noisy;
4. Automatic thermal cutoff;
5. The motor applies to 4 way cassette FCU or similar applications.

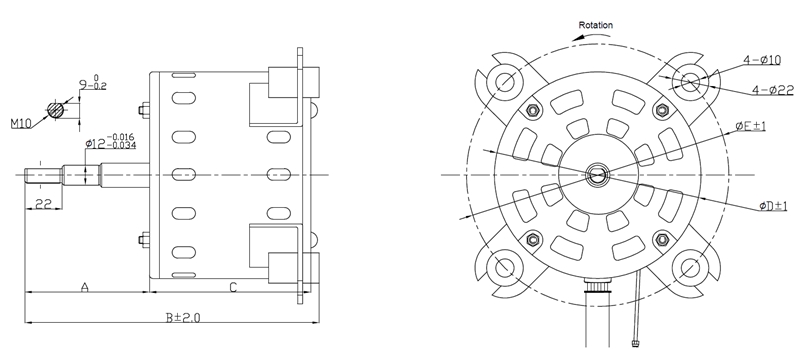

| Mounting Dimensions 安装尺寸(mm) |
| A | B | C | D | E |
Customizable
可定制 | Customizable
可定制 | Customizable
可定制 | 93/113/123 | 157.5 |
| 143 | 176-186 |
| Typical Motor Performance For Referance |
| 机组型号 | 额定电压/频率 | 电机型号 | 输入功率 | 输出功率 | 参考转速 | 噪音 |
| FCU Model | Vol./Fre.
(V/Hz) | Motor Type | Input Power
(W) | Output Power
(W) | Speed
(RPM) | Noisy
(dBA) |
| 34/200 | 220V/50Hz | YDK-8W-6P | 34 | 8 | 500 | ≤37 |
| 51/300 | 220V/50Hz | YDK-12W-6P | 46 | 12 | 530 | ≤39 |
| 68/400 | 220V/50Hz | YDK-18W-6P | 56 | 18 | 710 | ≤41 |
| 85/500 | 220V/50Hz | YDK-20W-6P | 60 | 20 | 540 | ≤43 |
| 102/600 | 220V/50Hz | YDK-25W-6P | 76 | 25 | 615 | ≤45 |
| 136/800 | 220V/50Hz | YDK-35W-6P | 130 | 35 | 550 | ≤46 |
| 170/1000 | 220V/50Hz | YDK-45W-6P | 135 | 45 | 590 | ≤48 |
| 204/1200 | 220V/50Hz | YDK-75W-6P | 166 | 75 | 710 | ≤50 |
| 238/1400 | 220V/50Hz | YDK-95W-6P | 201 | 95 | 815 | ≤52 |
