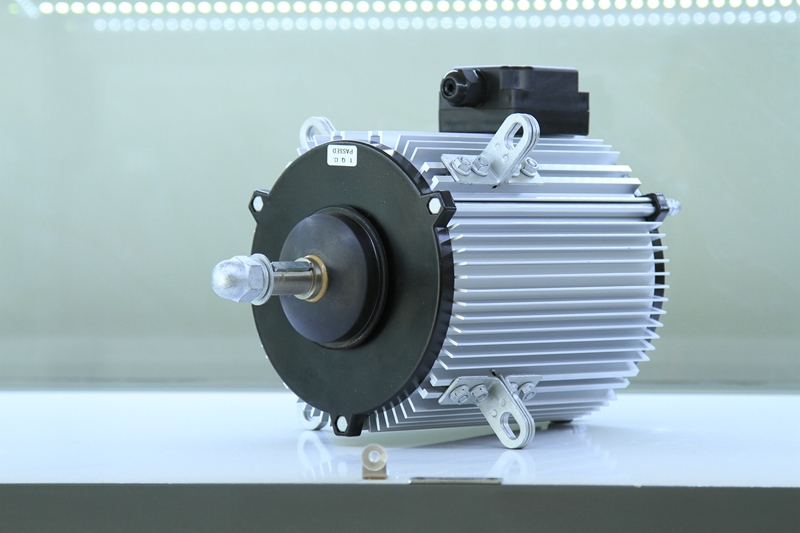

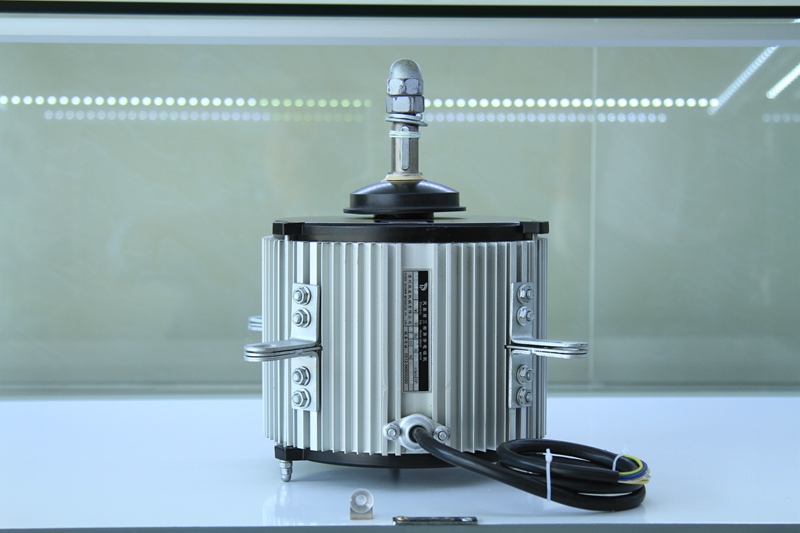

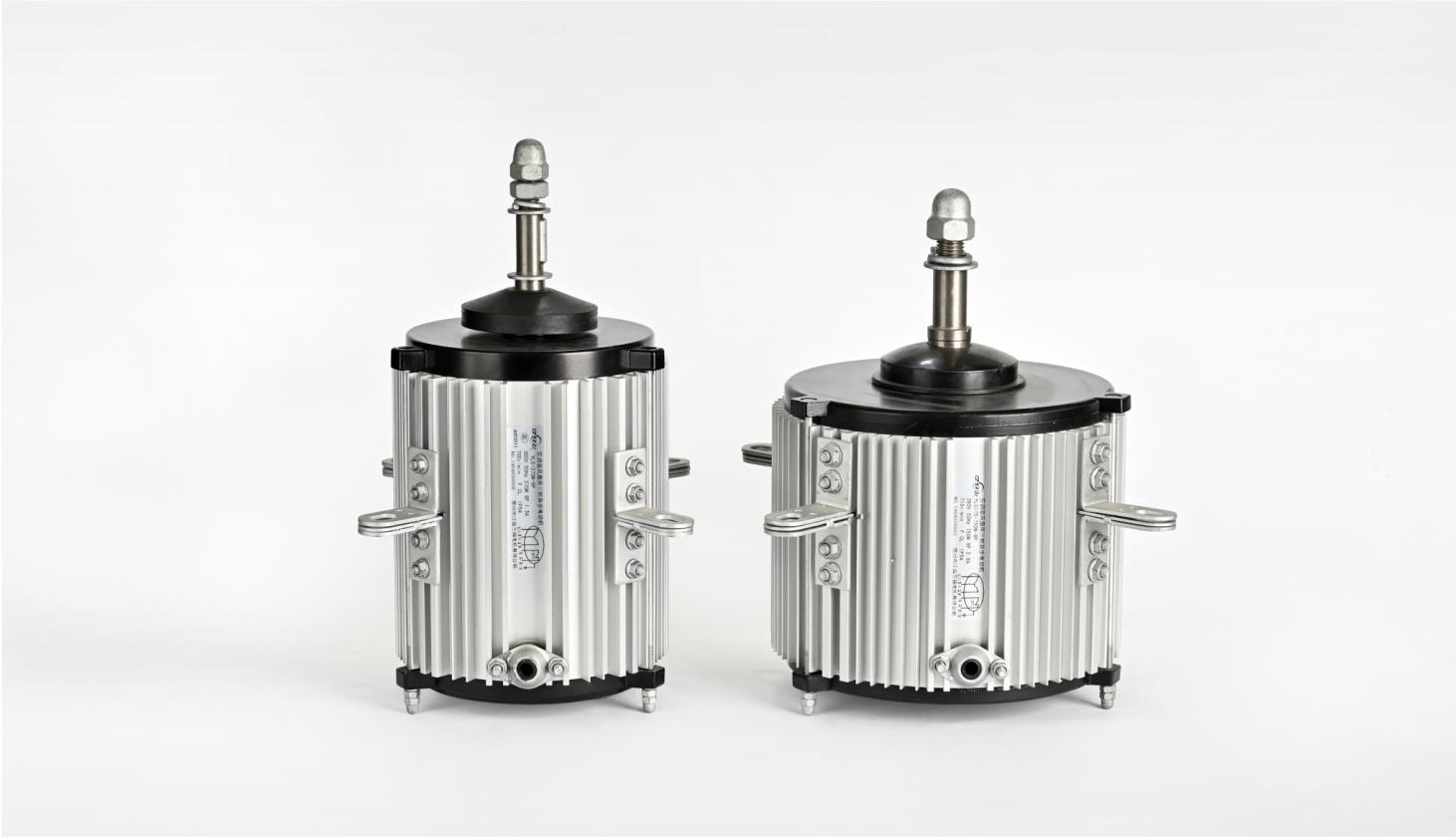

3PH AC Motor For Axial Flow Fan
Model Number：
Place of Origin：
Added：2021-03-17
Views：
Telephone：(+86) 0519 86329213
Keywords：
Next Previous

Details

Motor Specs -

1. IP level : IP54, Insulation class : B / F;

2. High quality deep groove ball bearing with low noisy and long

operating life, no maintenance needed;

3. Nickel-phosphorus treated shaft, anodized aluminum case,plastic powder coated end-shield for anti-rust treatment;

4. The motor applies to the out-door unit for central air conditioner

or similar applications.

电机型号

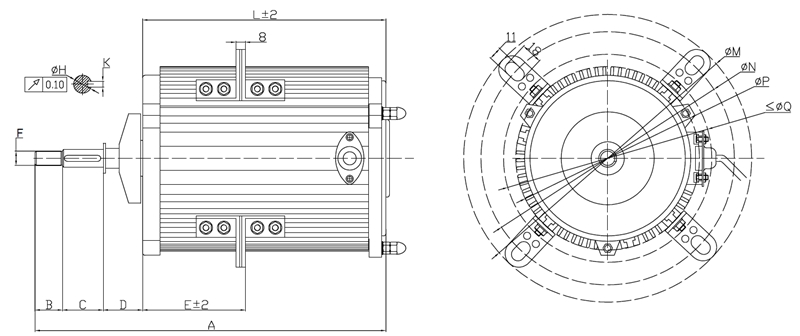

典型尺寸/ Typical Dimensions

电压/频率

输出功率

电流

转速

Motor Model

A

B

C

D

E

F

H

K

L

M

N

P

Q

Vol./Fre.
(V/Hz)

Ouput
Power
(W)

Current
(A)

Speed
(RPM)

YLS-370W-8P

284

23

34

33

86

M12

15

5

194

Φ240/Φ256

Φ212/Φ228

Φ154

Φ175

380/50

370

1.5

710

YLS-550W-8P

294

23

34

33

86

M12

15

5

204

380/50

550

2.6

710

YLS-750W-8P

293

19

40

30

63

M16

19

6

204

380/50

750

2.8

700

284

23

34

33

94

M12

15

5

204

380/50

750

2.8

700

254

28

34

32

86

M16

19

6

160

Φ284/Φ300

Φ256/Φ272

Φ197

Φ220

380/50

750

2.8

715

YLS-1100W-8P

279

28

34

32

86

M16

19

6

185

380/50

1100

3.9

720

YLS-1300W-8P

279

28

34

32

86

M16

19

6

185

380/50

1300

4.1

715

YLS-1500W-8P

289

28

34

32

86

M16

19

6

195

380/50

1500

4.5

720

YLS-1800W-8P

309

28

34

32

86

M16

19

6

215

380/50

1800

5.1

720

YLS-250W-6P

327

18

46

90

60

M12

15

6

173

Φ240/Φ256

Φ212/Φ228

Φ154

Φ175

380/50

250

0.9

920

YLS-550W-6P

326

18

65

70

60

M12

15

6

173

380/50

550

1.6

920

YLS-750W-6P

294

23

34

33

86

M12

15

5

204

380/50

750

2.4

930

YLS-1100W-6P

314

23

34

33

86

M12

15

5

224

380/50

1100

3.1

930

YLS-1500W-6P

303

28

34

32

86

M16

19

6

209

Φ268/Φ284

Φ240/Φ256

Φ186

Φ202

380/50

1500

4.5

945

YLS-1800W-6P

289

18

34

28

70

M16

19

6

209

380/50

1800

5.2

945

YLS-2000W-6P

328

18

34

32

105

M16

19

6

244

380/50

2000

5.5

940

YLS-2200W-6P

346

28

34

40

111

M16

19

6

244

380/50

2200

5.8

940
