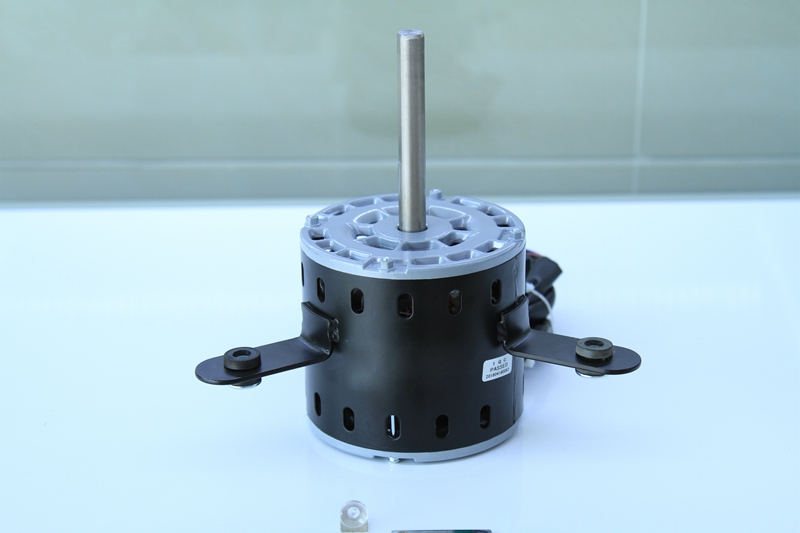

Motor Specs:
1. Rated voltage : 220V 50Hz / 110V 60Hz;
2. IP level : IP20 / IP43, Insulation class : B / F;
3. Automatic thermal cutoff;
4. Nickel-phosphorus treated shaft, plastic powder coated motor case for anti-rust treatment;
5. The motor applies to duct blower or similar applications.
| Typical Motor Performance For Referance |
| 机组型号 | 静压 | 额定电压/频率 | 电机型号 | 输出功率 | 输入功率 | 参考转速 | 风量 | 风机数量 |
| FCU Model | Static Pressure
(Pa) | Vol./Fre.
(V/Hz) | Motor Type | Output Power
(W) | Input Power
(W) | Speed
(RPM) | Air Volume
(m3/h) | Blower QTY |
| 170/1000 | 0 | 220V/50Hz | YDK-160W-6P | 160 | 310 | 850 | 2060 | 1 |
| 50 | 272 | 880 | 1760 |
| 204/1200 | 0 | 220V/50Hz | YDK-180W-6P | 180 | 350 | 850 | 2250 | 1 |
| 50 | 300 | 885 | 2100 |
| 272/1600 | 0 | 220V/50Hz | YDK-100W-6P | 100 | 420 | 820 | 2850 | 2 |
| 50 | 360 | 860 | 2700 |
| 306/1800 | 0 | 220V/50Hz | YDK-120W-6P | 120 | 490 | 820 | 3200 | 2 |
| 50 | 410 | 860 | 3080 |
| 340/2000 | 0 | 220V/50Hz | YDK-160W-6P | 160 | 550 | 830 | 3620 | 2 |
| 50 | 500 | 860 | 3400 |
