Product Advantages -

1. To use simplest 3 speeds switch for speed regulation

No need thermostat with speed regulation signal output, which

can save thermostat cost significantly for each FCU

2. Drop-in replacement of PSC motors

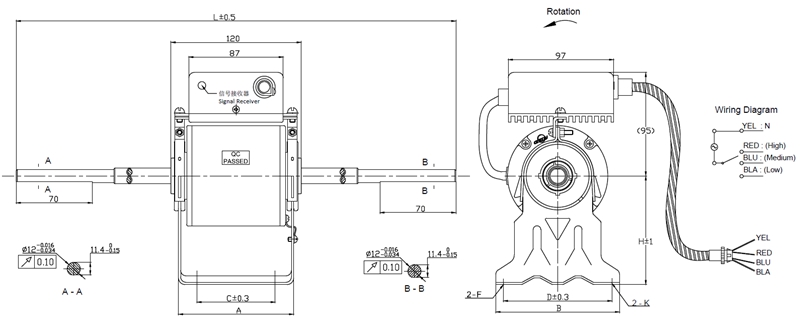

The wiring diagram of the ECM is exactly same as PSC motor (3

speeds ECM with 4 lead wires, Patent No.: ZL20152064500.0), users

can directly change to ECM without any power line change , which

meet the ECM needs of aftermarket replacement.

3. Remote controlled and post-programmable controller

The ECM can be adjusted by using IR remote to change setting of

each speeds according to the needs of field application

Motor Protections

Lock rotor protection

Loss of synchronism protection

Overcurrent & short-circuit protection

Phase loss protection

AC input overvoltage protection: 270±2%VAC

AC input low voltage protection: 170±2%VAC

Power module over temperature protection

PCBA over temperature protection

Motor Rated Parameters

-

Input voltage range： 198~242VAC, 50/60Hz

Rated output power： 80W@1350RPM

Efficiency：>70%

Controller MTBF : 50,000 H

Environmental Conditions -

Temperature：-10~50°C

Monthly averaged humidity：<90%RH，Non condensation

S1 Continuously working

Storage Conditions -

Temperature：-30~70°C, RH：10~90% , Non condensation

IR remote controller -

Batteries: DC3V , 2 AAA batteries

Remote control distance : no less than 5 meters
