1.Rated Voltage: 220V/ 115V, 50Hz / 60Hz;
2.Output power range from 8W to 120W;
3.IP level: IP20 / IP43;
4.High quality deep groove ball bearing with low noisy and long operating life, no maintenance needed;
5.Nickel-phosphorus treated shaft, plastic
powder treated motor case, zinc-plated
motor bracket for anti-rust treatment;
6.Insulation class : B / F;
7.Automatic thermal cutoff.
8.This motor is specially designed for fan coil unit or similar applications
Typical Motor Performance For Referance |
机组型号 | 静压 | 电压/频率 | 电机型号 | 输入功率 | 输出功率 | 参考转速 | 噪音 |
FCU Model | Static Pressure(Pa) | Vol./ Fre. (V/Hz) | Motor Type | Input Power(W) | Output Power(W) | Speed(RPM) | Noisy(dBA) |
34/200 | 12 | 220V/50Hz | YDK-9W-4P | 34 | 9 | 740 | ≤37 |
30 | 220V/50Hz | YDK-12W-4P | 37 | 12 | 880 | ≤40 |
50 | 220V/50Hz | YDK-20W-4P | 50 | 20 | 1074 | ≤42 |
51/300 | 12 | 220V/50Hz | YSK-13W-4P | 46 | 13 | 738 | ≤39 |
30 | 220V/50Hz | YSK-20W-4P | 53 | 20 | 904 | ≤42 |
50 | 220V/50Hz | YSK-26W-4P | 63 | 26 | 1075 | ≤44 |
68/400 | 12 | 220V/50Hz | YSK-18W-6P | 55 | 18 | 780 | ≤41 |
30 | 220V/50Hz | YSK-27W-4P | 67 | 27 | 954 | ≤44 |
50 | 220V/50Hz | YSK-38W-4P | 80 | 38 | 1120 | ≤46 |
85/500 | 12 | 220V/50Hz | YSK-28W-4P | 72 | 28 | 860 | ≤43 |
30 | 220V/50Hz | YSK-34W-4P | 82 | 34 | 973 | ≤46 |
50 | 220V/50Hz | YSK-47W-4P | 97 | 47 | 1130 | ≤47 |
102/600 | 12 | 220V/50Hz | YSK-36W-4P | 94 | 36 | 915 | ≤45 |
30 | 220V/50Hz | YSK-48W-4P | 109 | 48 | 1045 | ≤47 |
50 | 220V/50Hz | YSK-60W-4P | 116 | 60 | 1165 | ≤49 |
136/800 | 12 | 220V/50Hz | YDK-12W-4P | 130 | 12 | 850 | ≤46 |
220V/50Hz | YSK-35W-4P | 35 |
30 | 220V/50Hz | YDK-18W-4P | 140 | 18 | 1000 | ≤48 |
220V/50Hz | YSK-40W-4P | 40 |
50 | 220V/50Hz | YDK-25W-4P | 170 | 25 | 1150 | ≤50 |
220V/50Hz | YSK-56W-4P | 56 |
170/1000 | 12 | 220V/50Hz | YSK-33W-4P | 161 | 33 | 945 | ≤48 |
30 | 220V/50Hz | YSK-39W-4P | 180 | 39 | 1045 | ≤50 |
50 | 220V/50Hz | YSK-54W-4P | 200 | 54 | 1185 | ≤52 |
204/1200 | 12 | 220V/50Hz | YSK-41W-4P | 194 | 41 | 950 | ≤50 |
30 | 220V/50Hz | YSK-48W-4P | 223 | 48 | 1040 | ≤52 |
50 | 220V/50Hz | YSK-61W-4P | 245 | 61 | 1160 | ≤54 |
238/1400 | 12 | 220V/50Hz | YSK-49W-4P | 230 | 49 | 980 | ≤52 |
30 | 220V/50Hz | YSK-63W-4P | 250 | 63 | 1100 | ≤54 |
50 | 220V/50Hz | YSK-74W-4P | 295 | 74 | 1205 | ≤56 |

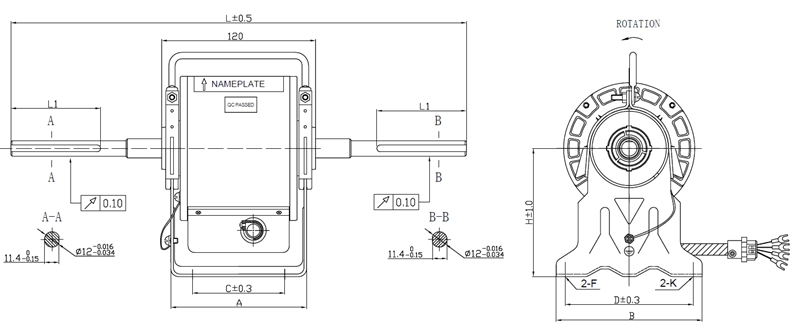

电机支架安装尺寸/ Motor bracket dimensions ( in mm) |
H | A×D | B×C | F | K | L | L1 |
90 | 110×100 | 90×80 | 11×9 | 11×9 | 470
(customizable) | 90
(customizable) |
95 | 106×90 | 72×65 | M5 | M5 |
106×106 | 70×90 | 8 | |
110×100 | 90×80 | 11×9 | 11×9 |
106×116 | 72×100 | 8 | 8 |
106×110 | 72×100 | 6.5 | 6.5 |
106×110 | 72×100 | 6 | 6 |
100 | 106×114 | 72×100 | 6 | 6×8 |
106×114 | 72×100 | 6.5 | 6.5 |
106×122 | 75×108 | 6.5 | 6.5×8.5 |
106×100 | 80×60 | 6.5 | 6.5 |
105 | 106×112 | 72×100 | 6 | 6×8 |
106×114 | 72×100 | 8 | 8 |
106×112 | 72×100 | 6.5 | 6.5 |
115 | 106×114 | 72×100 | 5.5 | 5.5×7.3 |
